5V Fiber Optic Gyro IMU Rugged Inertial Measurement Sensor 112*112*77.5mm 112

Wuhan Jingtian Zhiguang Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

5V Fiber Optic Gyro IMU Rugged Inertial Measurement Sensor 112*112*77.5mm 112

Place of Origin : china

MOQ : negotiable

Price : negotiable

Delivery Time : According to customer's requirement

Payment Terms : Negotiable

Supply Ability : Strong production capacity

Brand Name : JTZG

Model Number : 112

Product Name : Fiber Optic Gyroscope

Technology : Fiber Optic Gyroscope

Grade : Industrial

Applications : Aerospace, Defense, Navigation, Robotics

Customized Support : OEM, ODM

Dimensions : 112*112*77.5mm

Contact Now

112 Fiber Optic Gyroscope

The 112 Fiber Optic Gyroscope is a state-of-the-art angular velocity sensor that combines cutting-edge technology with exceptional performance. Designed for precision and reliability, the 112 gyroscope offers wide measurement range, fast response, and high sensitivity, making it the ideal choice for applications that demand superior accuracy in dynamic environments.

Key features of the 112 Fiber Optic Gyroscope include:

  • Wide Measurement Range: Capable of measuring a broad spectrum of angular velocities, the 112 provides unparalleled versatility for a wide array of applications.

  • Fast Response and High Sensitivity: Designed to deliver rapid real-time data, this gyroscope ensures precise and highly sensitive measurements, even in fast-moving systems or environments where accuracy is critical.

  • Compact and Lightweight: With its small size and lightweight design, the 112 fiber optic gyroscope is perfect for integration into space-constrained systems without compromising on performance or durability.

  • Exceptional Precision: Offers high precision with minimal drift, ensuring consistent and reliable data for systems that require the highest level of accuracy.

  • Rugged and Reliable: Built to withstand extreme conditions, the 112 is resistant to shock, vibration, and temperature fluctuations, guaranteeing long-term performance and dependability.

  • Immunity to Electromagnetic Interference: The 112 fiber optic gyroscope is fully immune to electromagnetic influence, ensuring that it operates without disruption in environments with high electromagnetic noise or interference.

Whether used in aerospace, navigation systems, robotics, or military applications, the 112 Fiber Optic Gyroscope delivers outstanding performance, robustness, and precision, making it the perfect choice for your most demanding applications.

Gyro Level

standard

A

Range ( 5V Fiber Optic Gyro IMU Rugged Inertial Measurement Sensor 112*112*77.5mm 112)

±300

Bias stability ( 5V Fiber Optic Gyro IMU Rugged Inertial Measurement Sensor 112*112*77.5mm 112) , 10s

0.2

0.1(Typical values 0.05)

Zero bias repeatability ( 5V Fiber Optic Gyro IMU Rugged Inertial Measurement Sensor 112*112*77.5mm 112) , 10s

0.2

0.1

Random walk coefficient ( 5V Fiber Optic Gyro IMU Rugged Inertial Measurement Sensor 112*112*77.5mm 112)

< 0.02

< 0.01

Scale factor non-linearity ( ppm )

50

50

Scale factor asymmetry ( ppm )

50

50

Scale factor repeatability ( ppm )

50

50

Frequency bandwidth ( Hz )

≥100

Startup time ( s )

≤5

Magnetic shielding

The optical fiber ring of key sensitive devices has magnetic shielding

Power supply ( V )

5V power supply

Power consumption ( W )

≤5

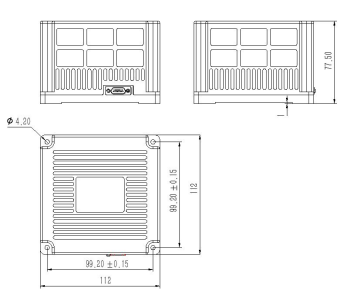

Dimensions ( mm )

112*112*77.5

Weight ( g )

1100±10

Output method

RS-422

Operating temperature (°C)

-40 ~+60

Storage temperature ()

-55 ~+85

Communication interface

DB9 , J30J-15-TJ , customizable

5V Fiber Optic Gyro IMU Rugged Inertial Measurement Sensor 112*112*77.5mm 112
